| Brand Name : | DIGITOVISION |
| Model Number : | DGTE-MA-0401 |
| Price : | $400~$800 |
| Supply Ability : | 1000SET/WEEK |
Outline

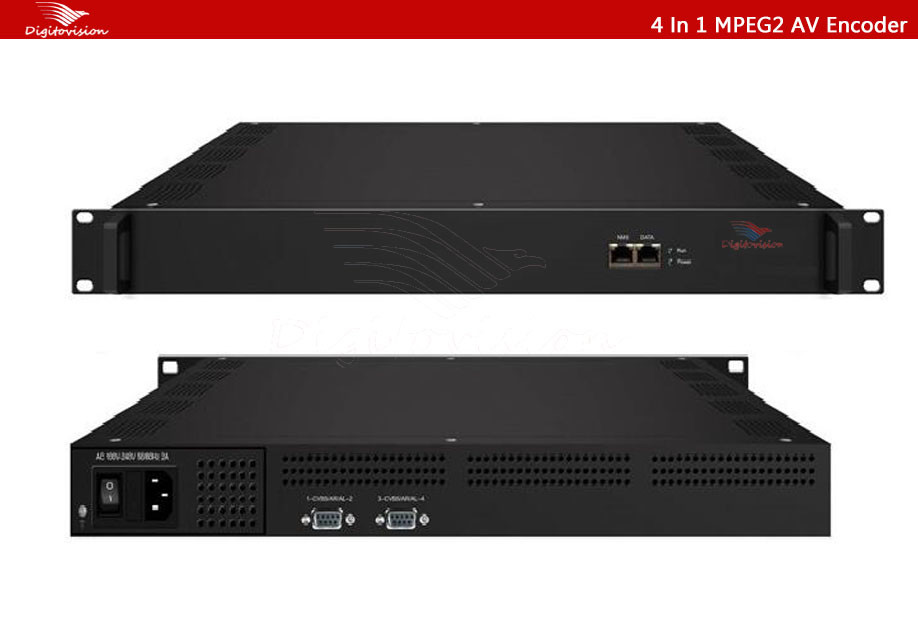

A multi-channel encoder is our newest professional SD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 4 CVBS channels input supporting MPEG-2 encoding format and MPEG-1 Layer 2, DD AC3 (2.0) Audio encoding. It can multiplex 4 encoded TS to generate a MPTS and 4 SPTS output through GE output port. With its high integration and cost-effective design, this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Features
4×CVBS video inputs with MPEG-2 Video encoding
Supports PAL and NTSC SD video formats
Support MPEG-1 Layer 2, DD AC3 (2.0) Audio encoding
Support IP output over UDP and RTP
Support Null PKT Filter
Support CC (closed caption)
Support logo, caption, QRcode insertion
Real-time effective encoding output bit-rate monitoring
Control via web management, and easy updates via web
Techuical Parameter
| Input | 4 CVBS inputs , RCA interface | |||
| Video | Resolution | Input | Output | |
| 720*576 | 720×576_50i, 704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i, 176×288_50i,176×144_50i | |||
| 720*480 | 720×480_60i, 544×480_60i, 352×480_60i, 352×240_60i, 320×240_60i, 176×240_60i, 176×120_60i, | |||
| Encoding | MPEG-2 | |||
| Bit-rate | 0.5Mbps~8Mbps per channel | |||
| Rate Control | CBR/VBR | |||
| GOP Structure | GOP_0_B, 1B, 2B,3B | |||
| Aspect Ratio | 4:3; 16:9 | |||
| Audio | Encoding | MPEG-1 Layer 2, DD AC3 (2.0) | ||
| Sampling rate | 48KHz | |||
| Resolution | 24-bit | |||
| Audio Gain | -12~+40 adjustable | |||
| Bit-rate | 64Kbps, 128Kbps,192kbps,256kbps,320kbps,384kbps each channel | |||
| Stream output | IP (1*MPTS and 4*SPTS) output over UDP and RTP, 1000 Base-T Ethernet interface (multicast) | |||
| System function | Network management (WEB) | |||
| Chinese and English language | ||||
| Ethernet software upgrade | ||||
| Miscellaneous | Dimension(W×L×H) | 482mm×328mm×44mm | ||
| Approx weight | 5kg | |||
| Environment | 0~45℃(work)；-20~80℃(Storage) | |||
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | |||
|
|
