Outline.

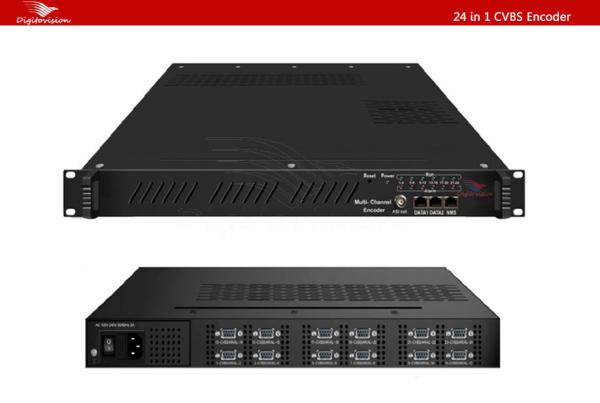

Multi-Channel Encoder is a professional audio & video encoding and multiplexing device.

It supports to convert 8/12/24 CVBS video inputs to MPTS or SPTS IP output. To meet customers’ various requirements, it is also equipped with 1 ASI output for option as required.

In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Features

1.8/12 CVBS video inputs with 8/12 SPTS and 1 MPTS output through Data 1 or Data 2

2.24×CVBS video inputs with 24 SPTS or 1 MPTS output through Data 1 or Data 2

3. Supports PAL and NTSC SD video formats, MPEG-2 Video encoding

4.Support MPEG1 Layer II, AC3 (2.0) Audio encoding and support audio gain adjustment

5. Support CC (closed caption)

6. Support “Null PKT Filter” function

7. Support QR Code, Caption, Logo insertion

8. Support 1 ASI output (optional)

9. Support PID Remapping/PCR accurate adjusting/PSI/SI editing and inserting

10. Control via web management, and easy updates via web

11. Real-time effective encoding output bit-rate monitoring
